When it comes to welding technologies, electron beam welding (EBW) and laser welding (LBW) are two of the most advanced and widely used methods. Both processes offer high precision and efficiency, but they have distinct characteristics that make them suitable for different applications.
In this blog, we will explore the differences between electron beam welding and laser welding, including their principles, advantages, disadvantages, and applications.
Principles of Electron Beam Welding and Laser Welding
Electron Beam Welding
Electron beam welding uses a high – velocity stream of electrons to generate heat. These electrons are accelerated and focused onto the workpiece, creating a concentrated heat source that melts the metal and forms a weld. The process typically takes place in a vacuum chamber, which prevents contamination and ensures a clean, precise weld.

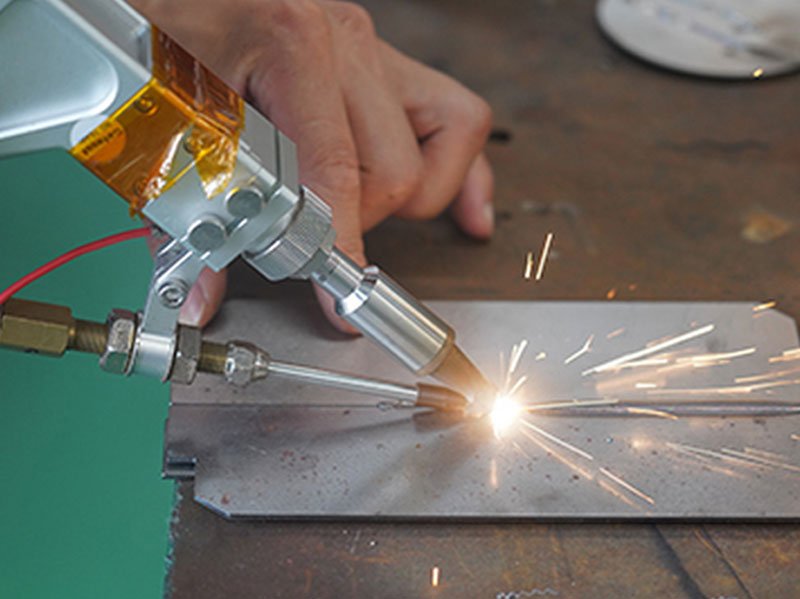

Laser Welding
Laser welding, on the other hand, uses a concentrated laser beam to generate the heat needed to melt and join metals. The laser beam is highly focused, allowing for precise control over the welding process. Unlike electron beam welding, laser welding can be performed in open air or with inert gases, making it more flexible and portable.
Advantages of Electron Beam Welding
High Precision and Deep Penetration
Electron beam welding is known for its high precision and deep penetration capabilities. The focused electron beam can create deep, narrow welds, making it ideal for heavy – duty applications and thicker materials. This is particularly useful in industries such as aerospace and heavy machinery, where strength and durability are critical.
Vacuum Environment
The vacuum environment in electron beam welding prevents contaminants from interfering with the weld, ensuring a high – quality, precise result. This is especially important in applications where weld purity is a priority, such as in medical devices and high – stakes industrial componentswhere weld purity is a priority, such.
High Energy Efficiency
Despite the slower process, electron beam welding is extremely energy – efficient, particularly for thicker materials. The energy consumed per unit weld is often lower than that of laser welding, making it a cost – effective choice for large – scale manufacturing.
Advantages of Laser Welding
Versatility and Flexibility
Laser welding is highly versatile and can be used on a wide range of materials, including thin and thick metals, as well as reflective materials such as aluminum and copper. It can also be performed in open air or with inert gases, making it more flexible and portable than electron beam welding.
High Speed and Automation
Laser welding is a fast process, making it ideal for high – volume production environments. It can be easily integrated into automated production lines, enhancing efficiency and consistency. This is particularly beneficial in industries such as automotive and electronics manufacturing, where speed and precision are crucialwhere.
Minimal Distortion and Reduced Heat Input
The concentrated energy of the laser beam results in minimal heat input to the surrounding material, reducing thermal distortion and warping. This helps maintain the mechanical properties of the base materials, ensuring the integrity and strength of the welded joint.
Disadvantages of Electron Beam Welding
Limited Portability
Electron beam welding is generally limited to controlled environments due to the need for a vacuum chamber. This makes it less portable and less suitable for on – site welding or applications where the parts are too large or difficult to fit into a vacuum chamber.
High Initial Cost
The initial cost of electron beam welding equipment is high, primarily due to the need for a vacuum chamber. Additionally, operating and maintaining the equipment can be costly, especially considering the specialized training required for technicians.
Disadvantages of Laser Welding
Lower Penetration Depth
While laser welding can achieve considerable penetration, it is generally less effective for thicker materials compared to electron beam welding. This makes it more suitable for thinner materials or applications where speed is more important than depth.
Gas Shield Requirement
Laser welding requires the use of a gas shield to protect the welding area from oxygen and vapor. This adds to the setup complexity and can affect the overall cost and efficiency of the process.
Applications of Electron Beam Welding and Laser Welding
Electron Beam Welding Applications
Electron beam welding is commonly used in industries such as aerospace, automotive, and heavy machinery, where high – strength, deep welds are required. It is also used in medical device manufacturing and nuclear industries, where weld purity and precision are criticalwhere high – strength, deep welds are required. It is also used in medical.
Laser Welding Applications
Laser welding is widely used in the automotive industry for high – volume production, as well as in the medical and electronics industries for precise, small – scale welding. It is also used in applications involving reflective materials, such as aluminum and copper, which can reflect electron beams but absorb laser energy.
Cost Considerations
Electron Beam Welding
The initial cost of electron beam welding equipment is high, primarily due to the need for a vacuum chamber. Additionally, the operating and maintenance costs are also significant, making it a more expensive option in the long run.
Laser Welding
While still pricey, laser welding equipment generally has a lower upfront cost than electron beam welding. The lack of a vacuum chamber requirement makes it more practical and economical, especially in high – volume production environments.
Future Trends in Electron Beam Welding and Laser Welding
Both electron beam welding and laser welding are expected to continue evolving with advancements in technology. Future trends may include improved energy efficiency, higher precision, and expanded applications in various industries. As the demand for high – quality, efficient welding solutions grows, these technologies will play an increasingly important role in manufacturing.
Conclusion
Choosing between electron beam welding and laser welding depends on the specific requirements of your project. If you need high – precision, deep penetration welds for thick materials, electron beam welding may be the best choice. However, if you prioritize speed, flexibility, and cost – effectiveness, laser welding could be the way to go.
By understanding the advantages and disadvantages of each method, you can make an informed decision that aligns with your needs and goals.
